| JVS-N815-WF | ||
| Video | Image Sensor | 1/ 2.7” CMOS |
| Max Resolution | 1920 x 1080 | |
| Effective Pixels | 2.0MP | |
| Compression Standard | H.265/H.264 | |
| Maximum Frame Rate | 1080p@20fps | |
| SNR (dB) | 55.7db | |
| Bit Rate | 40~8192 Kbps | |
| Illumination | 0Lux (IR ON) | |
| Lens | Lens | Fixed 4 mm |
| Viewing Angle | H: 87.4°, V: 47°, D: 104° | |
| IR-LEDs | 18Pcs IR LEDs | |
| IR-Distance | 15 Meters | |
| Function | Motion Detection | Support |
| Email Alert | Support | |
| Day& Night | Support | |
| Storage | Support up to 128G | |
| Pan/Tilt | Not Supported | |
| Audio Input | Support (Built-in Mic) | |
| Audio Codec | Support (G711A/G711U) | |
| Privacy Mask | Support up 4 areas | |
| Exposure Control | Support | |
| Image Adjustment | Support | |
| Auto. White Balance | Support | |
| Image Rotation | Support (Mirror/Flip) | |
| Two-Way Talk | Support | |
| Network | Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP, UDP, ICMP, SMTP, DHCP, DNS | |
| Stream | 2x Streams | |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n), Dual 2.4Ghz Antenna | |
| LAN | Support | |
| Smart Phone | iOS/Android | |
| General | Dimensions (WxHxD) | 186.82×56.27×68.08mm |
| Weights | 400g | |
| Material | Aluminum | |
| Working Temperature | -20°C～55°C | |
| Humidity | RH 10%～90% | |
| Power Supply | DC12V/1A | |
| Consumption | Day≦3W; Night≦ 6W | |
| Installation | Wall/Ceiling Bracket Mounting | |
Roll over image to zoom in

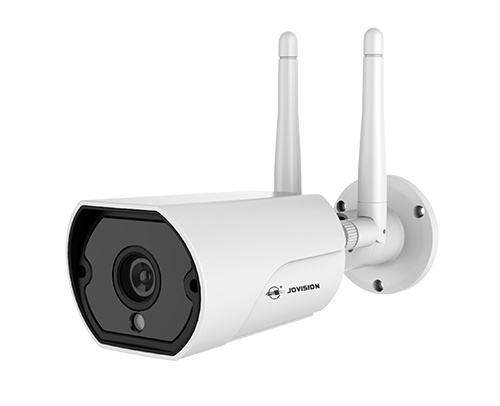

JVS-N815-WF
2MP Wireless network camera
- Resolution 1920×1080
- With IR LED and IR-CUT, monitoring day and night
- Two-way talk
- Dual antenna 2.4Ghz Wi-Fi and 10/100M RJ45 Port
- Supports smartphone remote viewing
- Ingress Protection IP66
- Support 128GB SD Card
