In stock

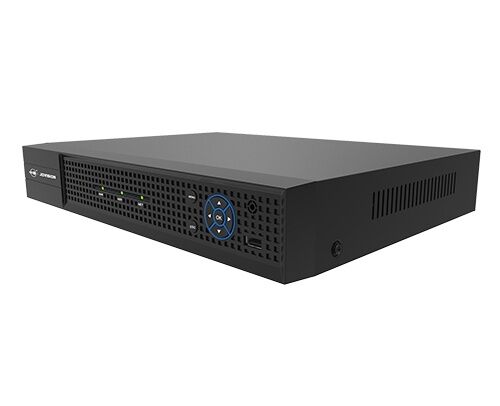

16CH Digital Video RecordER

  • Support H.264+(Quasi H.265) encoding, ultra-low bit rates, compatible with H.264 surroundings;
  • Support VGA, HDMI HD output simultaneously;
  • Support various mobile monitoring (IOS, android);
  • Support UTC, control signal& video stream transmit through one single coaxial;
  • Support AHD/TVI/CVI/CVBS/IP five signals;
  • Support multi- languages;
  • Support IVP;
SKU: JVS-XD2816-HE21U Category: Tag:
Video and AudioAnalog Camera Input16Channel, BNC
HDCVI Camera1080P@25/30fps,  720P@25/30fps
AHD Camera4MP, 1080P@25/30,   720P@25/30fps
TVI Camera1080P@25/30,   720P@25/30fps
IP Camera Inputup to 1080P
Video port
Full HD:  16CH
hybrid :8CH+8CH
Full network:16CH
Audio In/Out2/1, RCA
Two-way Talk1CH RCA
Resolution4MP,1080P, 1080N,   720P, WD1
Record RateMain   stream:4M(1~8fps),1080P(1~21fps),1080N/720P/960H/D1(1~21fps)
Sub stream: D1/CIF(1~8/12fps)
Record ModeManual, Schedule   (General, Continuous), MD (Motion Detection, Video Loss, IVP),
Audio Compression G.711U
DisplayInterface1 HDMI ,1 VGA
OSDDevice ID, Time,   Record Setting, Alarm setup, Audio, Camera title
NetworkInterface1 RJ-45 Port (100M)
Network FunctionTCP/IP, DHCP, DNS,   DDNS, HTTPS,HTTP,
Smart PhoneiPhone ,Android
Playback and BackupPlayback16CH
Search ModeTime /Date, MD , IVP,   Auto, Scheduled
Playback FunctionDay view, Hour view,   Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Snap, Sound on/off,   Zoom, Backup to U-Disk
Backup ModeUSB
Hard Disk DriverInterface Type:2 SATA Interface
Capacity:Up to 6 TB capacity   for each disk
GeneralPower Supply:12 VDC
Consumption:≤ 10 W
Working Temperature:0℃~ +55℃
Working Humidity:10% to 90%
Dimensions:200 × 200 × 45 mm (7.9   × 7.9 × 1.8 inch)
Weight:≤2.0 kg (4.4   lb)
