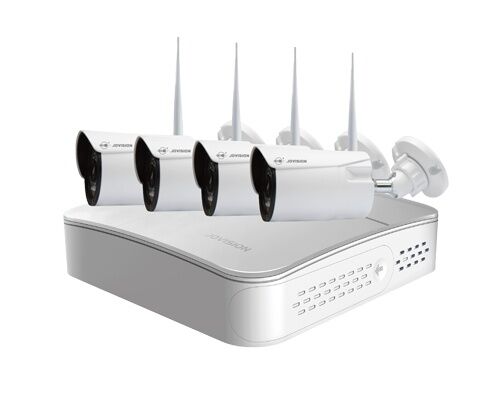

Jovision JVS-WF1404W-K4 1.3MP 4CH Wireless IP Kit

৳ 25,000.00

Out of stock

2.4G WIFI video transmission, no need network cables;
With smart link technology, WIFI IP cameras connect to NVR automatically, no settings needed;
Plug and play. After power on, IP cameras are added to NVR automatically. NVR outputs image;
Professional enhanced WIFI module ensures transmission open distance up to 500m, through wall distance 30m

4pcs Low illumination 1.3MP WIFI IP cameras;
1/3” low illumination 1.3MP image sensor has good day/night vision;
WIFI IP cameras can be installed anywhere without network cables needed;

SKU: JVS-Kit Category:

Jovision JVS-WF1404W-K4 1.3MP 4CH Wireless IP Kit

Video& Audio     InputVideo Input4 Channel
Video& Audio OutputHDMI1 Channel
VGA1 Channel
Audio Output1ch,RCA port   (electrical level:2.0Vp-p impedance:1kΩ)
Video& Audio codec   parametersRecord  Resolution1280×960/ 1280×720/ 768×432/ 704×576
Video Encoding Resolution4CH   960P/720P
Synchronous Playback4CH
Record      ManagementRecord/Snapshot TypeManual    record/snapshot, Scheduled record/snapshot, Alarm triggered record/snapshot,  Motion Detection triggered record/snapshot, playback snapshot
Playback ModeTime   List & Event   Playback
Backup ModeVideo   Backup &   Picture Backup
HDDHDD   Type1 SATA   Port
Quantity of HDDSupports up to 6TB HDD
 Privacy Mask Rectangle areas4 Areas
External InterfaceAudio Output1ch
Network Port1 RJ-45,10M/100M Ethernet   Self-adaption
USB Port1* USB2.0,support USB HUB
Alarm InputMotion Detection
Alarm Outputoptional
WIFI bandwidth300Mbps
Antennadouble 5DBi antennas
ProtocolTCP/IP, DHCP, UDP, SMTP, NTP,Internal  P2P service
GeneralWork   Temperature -10℃~+55℃
Work Humidity 10%~90%
PowerDC12V/ 2A
Watts ≤15W(without HDD)
 Size(W*H*D) (mm) 200*200*56mm
 Weight   (g) ≦1200g (Without  HDD)
Specification Resolution 1280×960
 Pixel 1.3MP
 Compress H.264
 Frame Rate Max 25fps
 Bit Rate 64Kbps~8Mbps
Lens Lens Mount M12
 Lens 3.6mm
 View Angle92°
 Focus Manual
Function Privacy Mask 4 Rectangle areas
 Exposure Control Auto
 Gain Control Auto
 White Balance Auto
 Day & Night IR cut filter with auto switch, Support Color to   Black
 Video AdjustSupports contrast,   brightness,  saturation, sharpness adjustment
 Remote Operation System, Stream, User, Network Management
 Motion Detection Support
 Alarm E-mail, Client
Interface Audio Input 1 Audio Input
DC Input 1 DC 12V input
 Net 1 RJ45 10M/100M adaptive   interface
Network Ethernet 10/100M Ethernet
 Wireless WIFI
Transmission standard IEEE802.11b, 802.11g, 802.11n
 Frequency 2.4 GHz ~ 2.4835 GHz
 Dual Stream Support
 Transmission Internal P2P Protocol
 Browser IE8+,Chrome18+,Firefox5.0+,Safari5.02+
  Remote Connection 16CH
User Permission Up to 13 users, Three level   authority:  Administrator, User, Visitor
General Infrared Lamp 2 Array Lamps
 IR distance(m) 30m
 Best distance(m) 10m
 Temperature -20℃~55℃
 Humidity 10%~90%
 Power Supply DC 12V/ 1A
 PowerDay: <3W      Night: <6W
 Material Aluminum
 Size(W×H×D)(mm) 65*80*165mm
