| JVS-ND6604-HA | ||
| Video& Audio Input | Video Input | 4 Channel |
| Video& Audio Output | HDMI/VGA | Resolution: 1024*768,1280*1024, 1280*800,1440*900,1280*720,1280*720,1920*1080,1920*1080,3840*2160 |
| Audio Output | Support | |
| Video& Audio code parameters | Compression Standard | H.264, H.265 |
| Video Input Capacity | 4ch 720P/ 960P/1080P/3MP/4MP/5MP | |
| Synchronous Playback | 4ch 720P/960P/1080P/3ch 3MP/2ch 4MP/2ch 5MP | |
| Record | Record Type | Manual, Scheduled, Alarm triggered, Motion Detection triggered |
| Management | Playback Mode | Time List & Event Playback |
| Backup Mode | Video Backup & Picture Backup | |
| Storage | HDD Type | SATA Port |
| Quantity of HDD | 1 PCS(supports up to 6TB HDD) | |
| External Interface | Network Port | 1 RJ-45 |
| USB Port | 2 PCS USB2.0 | |
| Network Management | Max. Remote Channel | 16 channel |
| Protocol | TCP/IP, DHCP, UDP, SMTP, NTP | |
| General | Work Temperature | -10℃～+55℃ |
| Work Humidity | 10%～90% | |
| Power | DC12V | |
| Watts | ≤15W(without HDD) | |
| Case | Standard 1U | |
| Size(W*H*D)(mm) | 375*50*270 | |
| Weight (g) | ≦650 (Without HDD) | |
Roll over image to zoom in

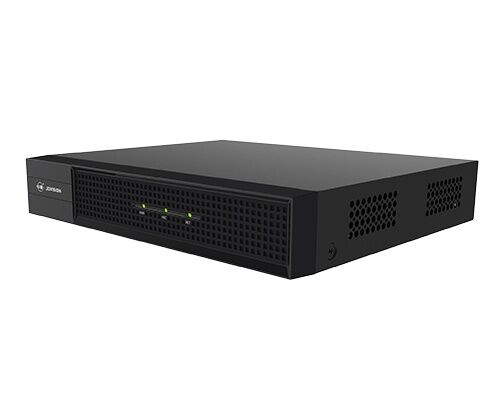

JVS-ND6604-HA
1HDD Network Recorder
P2P technology, True P2P, one key to search and connect with IP Camera;
H.264, H.265 compression standard, lower compression rate and better picture quality;
Embedded Linux real-time O/S, realizing central management, preview, recording, alarm and other useful functions.
Support audio compression to achieve real-time video monitoring function
Search and add IPC automatically with any operation
Network Assistant, one-key IP set function
Support local user and network user management, and set flexible management authority
Support motion detection, 4 separate detection areas can be set per channel
Support search and backup of log, recording, picture and so on
Support regular restart and auto log out
Support VGA and HDMI simultaneous output
