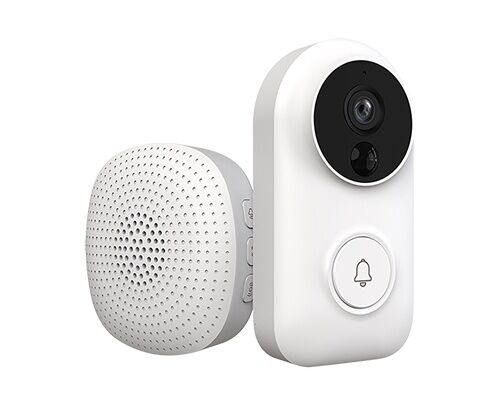

| JVS-SD1 | ||
| Video | Image Sensor | 1/ 4” CMOS |
| Max Resolution | 1280 * 720 | |
| Effective Pixels | 1.0MP | |
| Compression Standard | H.265/H.264 | |
| Maximum Frame Rate | 720p@25fps | |
| SNR (dB) | 54dB | |
| Bit Rate | 40~8192 Kbps | |
| Illumination | 5Lux (IR ON) | |
| Lens | Lens | Fixed 2.6 mm |
| Viewing Angle | H: 91.1°, V: 48.1°, D: 108.9° | |
| IR-LEDs | 4 pcs IR LEDs | |
| IR-Distance | 5 Meters | |
| Function | Motion Detection | PIR Support |
| Day& Night | Support | |
| Storage | Free two days cloud storage | |
| Audio Input | Support | |
| Audio Codec | Support (G.711A/G.711U) | |
| Auto. White Balance | Support | |
| Two-Way Talk | Support | |
| Reset | Reset Button on cable | |
| Network | Ethernet | Not Support |
| Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP | |
| Stream | 2x Streams | |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n), Dual 2.4Ghz Antenna | |
| LAN | Not Support | |
| Smart Phone | iOS/Android | |
| General for Doorbell | Dimensions (WxHxD) | 116×61×27.2mm |
| Weights | 178g | |
| Material | Aluminum & Plastic | |
| Working Temperature | -10~45℃ | |
| Humidity | RH 10%～90% | |
| Power Supply | Battery-powered,4pcs double A battery | |
| Consumption | Day≦3W; Night≦ 6W | |
| Installation | Wall/Ceiling Mounting | |
| General for Speaker | Dimensions (WxHxD) | 80×80×52mm |
| Weights | 78g | |
| Material | Aluminum & Plastic | |
| Working Temperature | -10~45℃ | |
| Humidity | RH 10%～90% | |
| Power Supply | AC 100V-240V | |
| Consumption | Working：< 200mA; Stand by:< 5mA | |
| JVS-SD1 |
