| JVS-H510-PLUS | ||
| Camera | Image Sensor | 1/3″CMOS |
| Resolution | 1280×960 | |
| Pixel | 1.3MP | |
| Compression | H.264/JPEG | |
| Frame Rate | 25fps | |
| Bit Rate | 64Kbps～8Mbps | |
| Lens | Lens Mount | M12 |
| Lens | 2.8mm/3.6mm optional | |
| View Angle | 107.2° | |
| Focus | Fixed | |
| Function | Privacy Mask | 4 Rectangle areas |
| Exposure Control | Auto | |
| Gain Control | Auto | |
| White Balance | Auto | |
| Day & Night | IR cut filter with auto switch | |
| Support Color to Black | ||
| Video Adjust | Supports contrast, brightness, saturation, sharpness adjustment | |
| Remote Operation | System, Stream, User, Network Management | |
| Motion Detection | Support | |
| Alarm | E-mail、Client | |
| Voice Intercom | Support | |
| Local Storage | 64G | |
| PTZ Control | Rotation Angel | Horizon:355° Vertical:120° |
| Preset | 127 | |
| Automatic Cruise | 1 line | |
| Horizontal Scan | 1 Line | |
| Interface | Audio Input | 1 Built-in MIC |
| Audio Output | 1 Built-in Speaker | |
| Net | 1 RJ45 10M/100M adaptive interface | |
| Alarm In | 1 CH | |
| Alarm Output | 1 CH | |
| TF slot | 1 standard TF card slot | |
| Reset | Restore to the factory settings | |
| Network | Ethernet | 10/100M Ethernet |
| Wireless | WIFI | |
| Dual Stream | Support | |
| Protocol | HTTP,TCP/IP,ICMP,UDP,SMTP,FTP,DHCP, DNS,PPPOE | |
| Transmission | Internal Cloudsee Protocol | |
| Browser | IE8+,Chrome18+,Firefox5.0+,Safari5.02+ | |
| Remote Connection | 6 CH | |
| User Permission | Up to 13 users, Three level authority: Administrator, User, Visitor | |
| General | Infrared Lamp | 2 Lattice Lamps |
| IR distance（m） | 15m | |
| Best distance（m） | 8m | |
| Temperature | -20℃～55℃ | |
| Humidity | 10%～90% | |
| Power Supply | DC 5V/ 2A | |
| Power | Day: ＜3W Night: ＜6W | |
| Material | White ABS+PC | |
| Size(W×H×D)(mm) | 115*147*138mm | |
| Weight(g) | 300g | |
| Installation | Wall/Ceil/Desk Mounting | |
Roll over image to zoom in

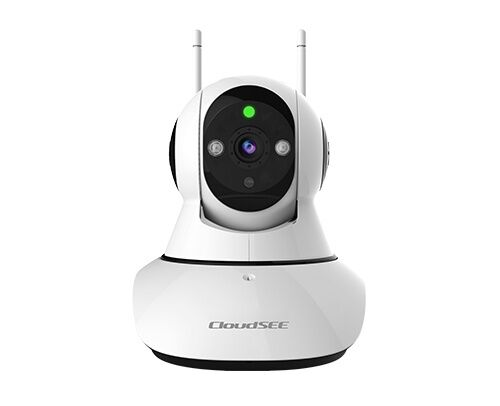

Jovision JVS-H510-PLUS
1.3MP Wi-Fi Network PT Camera
Configure device through wired/wireless network.
Support horizontal and vertical PT; control viewing angle freely.
Support WiFi and wire configuration
Built-in MIC and speaker,
Support two-way talk.
Support multiple RS433 alarming methods, magnetic door, bracelet etc.
Support High/Standard/Flow definition switch.
Support 64G local storage.
Support Android/IOS/Windows PC client remote view.
